TECHNICAL DATA :
| Laminar Air flow Compatible | |
| Intensity/illuminance at 1 meter distance | 160,000 Lux |
| Light field Diameter | 20cm |
| Action Radius | 1850mm |
| Colour Temperature | 3800 k – 4500 K (Variable) |
| Color rendering index | >95 |
| Temperature increase at head area | >1° C |
| Dimming Range | 10-100% |
| Light Source | High Performance LED’s |
| Expected Life of LEDs | 40,000 – 60,000 hours |
| Power supply | 200-240V AC, 50/60 Hz |

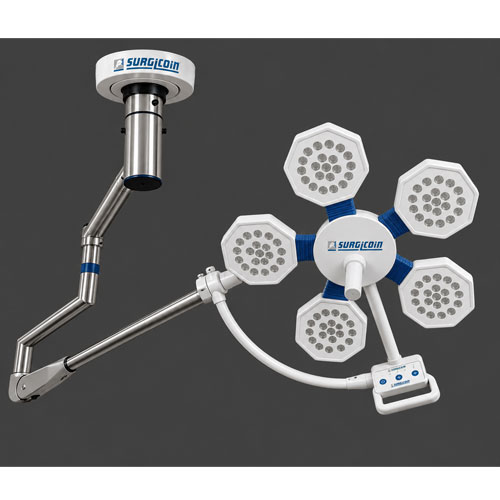

Shadowless LED Ot-Light Ceiling Type Multiple Petals Optilux- 101
SALIENT FEATURES :
- Ceiling mountable LED O.T. Light. Dome Light Head consist of single dome. Revolving outer
handles at light head provided to allow for sterile position. - Sterile positioning an ergonomic, exchangeable and centrally positioned sterile handle
within the light head is provided. - Light head is made of ABS / Aluminium.
- LED Technology providing ilumination close to natural light & ensure clear visibility of tissues
and deeper car ties of body. The colour temp. and colour rendering is close to average
daylight, the surgeon will be able to see the real colour of the tissue & organ during
operation. - There is control panel situated on the dome.
- Control Panel Functions : On-off switch, Intensity adjustable control, Adjustable color
temperature & Focusing adjustable from control panel or manually by sterile handle. - The highly counter balanced mechanism to fix the dome at any position, easy manuverable
free up & down & swing movements & freely rotatable at any angle (360 degree). - Facility for exact focusing on tissues in deeper regions.
- Outer handles at the light head provided to allow for non-sterile positioning.
- User adjustable wide focus and angle range.
- Movements axial, radial, angular with spring balance.
- Detachable & Sterilisable handle to adjust focus.
- Compact, light weight, slim design.
- Low energy consumption, high efficiency, very low heating.
- No harmful radiation of IR- Infrared or UV-Ultraviolet.
- Easy to clean its surface.
- Battery back up option also available on request (Optional).
*The product photograph displayed is for reference and display purpose only. The product will be supplied as per order specification
and may vary.
