TECHNICAL DATA :
| Dome Diameter with thickness 30-60mm Approx. | |
| Main Dome | 600 mm (+20%) |
| Satellite Dome | 600 mm (+20%) |
| Intensity/illuminance range at 150-400mm or more distance | |
| Main Dome | 1,60,000 Lux (Adjustable) |
| Satellite Dome | 1,60,000 Lux (Adjustable) |
| Working distance (D1+D2) | 1m |
| Material of Dome | ABS/Aluminium |
| Field Diameter | |
| Main Dome | 200mm or above |
| Satellite Dome | 200mm or above |
| Height adjustment | 600mm |
| Action Radius | 1850mm |
| Colour Temperature (variable) | 3800-5000° K |
| Color rendering index | >95 |
| Temperature increase at head area | 1°C |
| Dimming Range | 10-100% |
| Type of Control panel | Manual / touch screen |
| Expected LED service life | 40,000 hrs. -60,000 hrs |
| Power supply | 230Volts AC, 50Hz |
| Battery Backup | >1 hr. (optional) |

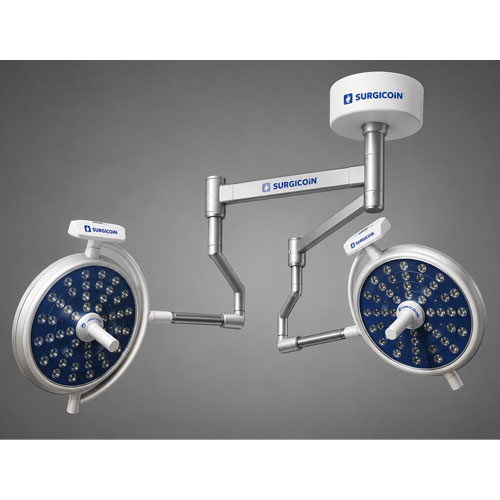

SHADOWLESS O.T. LED LIGHT CEILING DOUBLE DOME Optilux- 201 (Round Dome)
SALIENT FEATURES :
- Light with electronic control, for homogeneous and shadow less light with
minimum temperature rise. - Highly counter balanced mechanism to fix the dome at any position, easy
maneuverable free up & down and swing movements & freely rotatable at any
angle (360 degree). - The lamp head has multiple LED light, sources includes a combination of Red &
White/ Multi colour LEDs to optimize colour radiation. - Light intensity adjustable from dome control panel.
- Facility for exact focusing on tissues in deeper regions.
- User adjustable wide focus and angle range.
- Movements axial, radial, angular with spring balance.
- Detachable & Sterilisable handle to adjust focus.
- Compact, light weight, slim design.
- Low energy consumption, high efficiency, very low heating.
- No harmful radiation of IR- Infrared or UV-Ultraviolet.
- Easy to clean its surface.
*The product photograph displayed is for reference and display purpose only. The product will be supplied
as per order specification and may vary.
